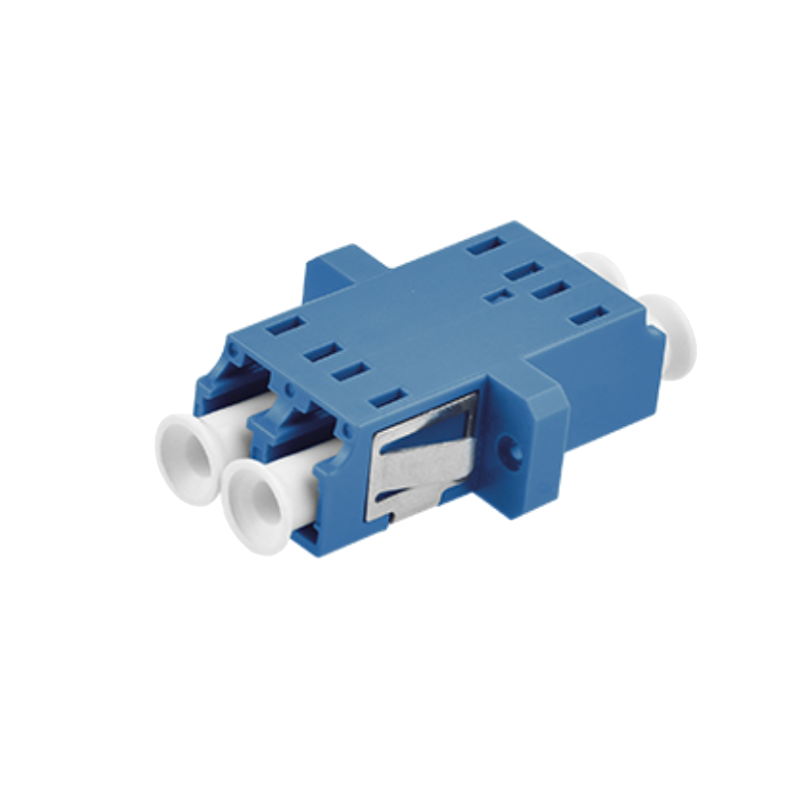

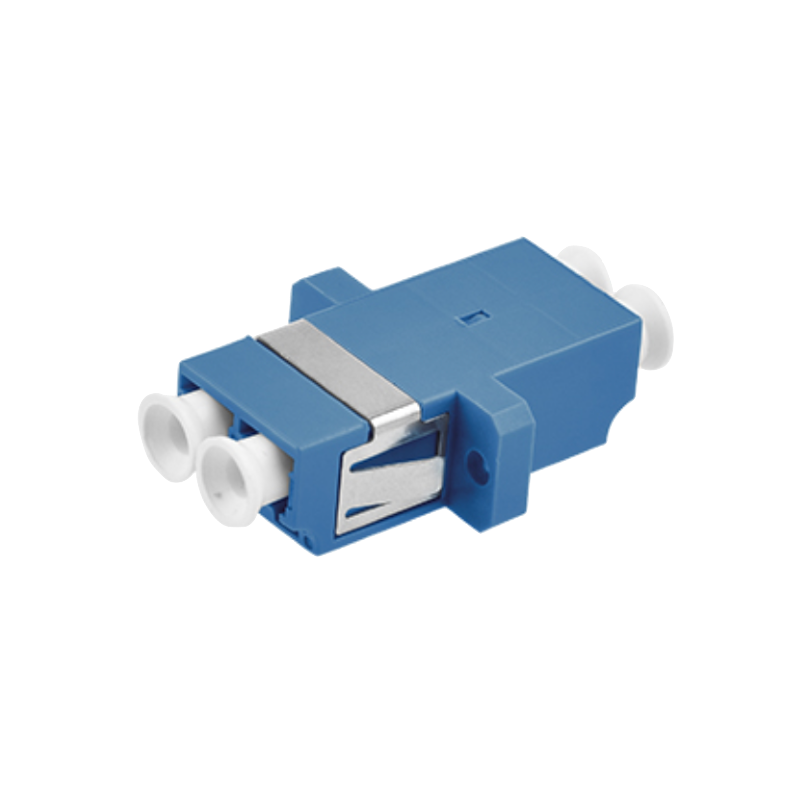

LC UPC DX Asymmetric Welding Adapter Without Flange Fiber optic adapter, also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping.
Assistência na solução de problemas e soluções de compatibilidade do sistema, disponíveis sempre que você precisar.
Opções personalizadas de contagem de fibras, comprimento e cor da bainha para atender aos seus requisitos específicos.
| Adapter Type | LC | |||
| Body Style | Duplex | |||
| Connector Polish Type | UPC | |||
| Mounting Type | Without Flange | |||
| Connector Fiber Mode | Single mode(SM) | |||
| Alignment Sleeve Material | Ceramic | |||
| Durability | >1000 times | |||
| Color | Blue | |||
| Insertion Loss | ≤0.20dB | |||
| Durability(500 Matings) | ≤0.20dB | |||
| Operating Temperature | -40℃~+60℃ | |||
| Storage Temperature | -45℃~+85℃ | |||
| Fire Resistant | IEC61754 IEC 60874-1 | |||
| Standards-Compliant | ROHS, IEC and GR-326 | |||
