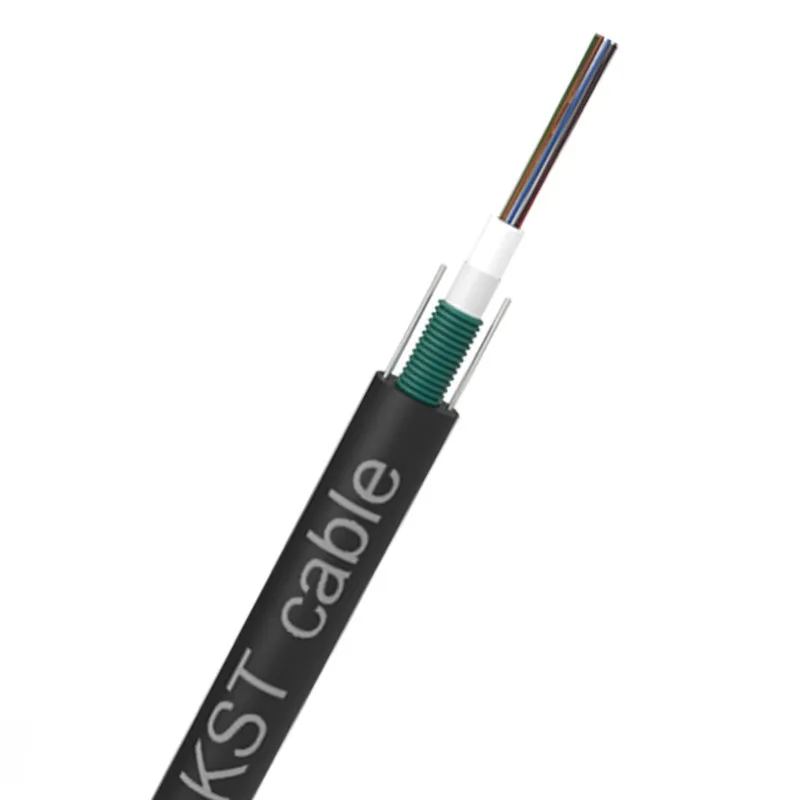

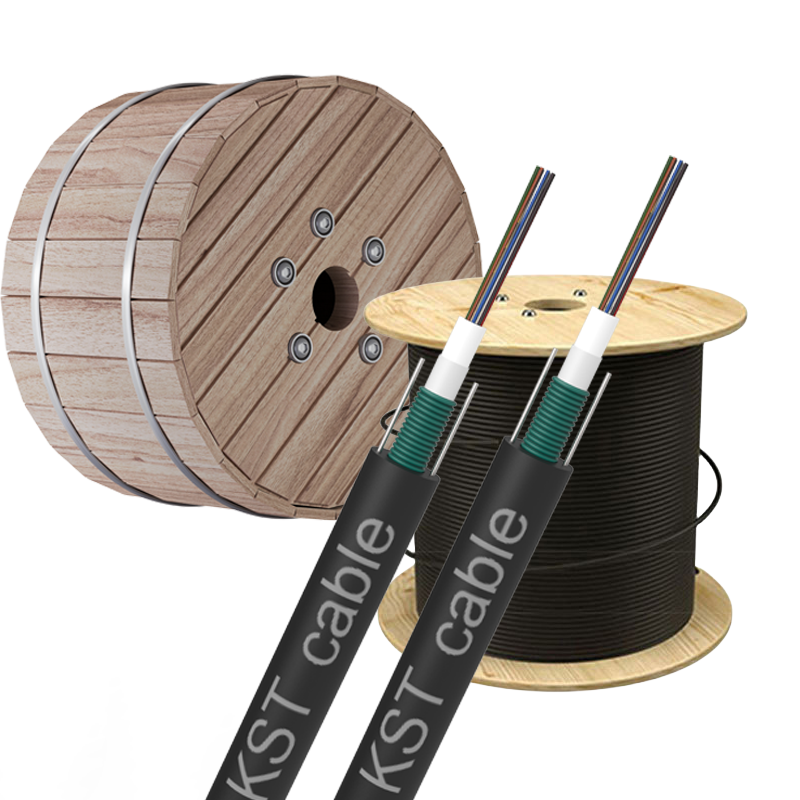

This outdoor optic fiber cable features a corrugated steel armored structure with a central loose tube design, supporting 2-24 cores for reliable performance in external environments.
Assistência na solução de problemas e soluções de compatibilidade do sistema, disponíveis sempre que você precisar.
Opções personalizadas de contagem de fibras, comprimento e cor da bainha para atender aos seus requisitos específicos.

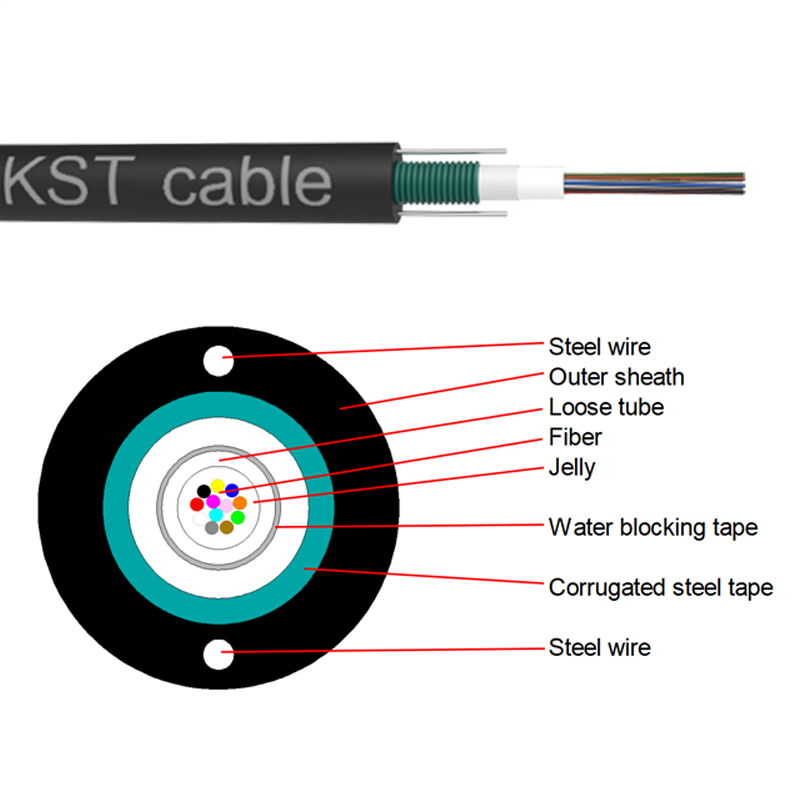

Optical fibers are housed in a loose tube made of high-modulus plastic, filled with water-resistant gel compound. The tube is longitudinally wrapped with corrugated steel tape (PSP), and two parallel steel strength members are positioned symmetrically on both sides of the cable. An outer polyethylene (PE) sheath completes the robust, integrated cable structure—ideal for demanding outdoor environments.
Suitable for duct installation and aerial deployment (with messenger support). Commonly used in telecom access networks, FTTx, metropolitan area networks (MANs), utility communications, and industrial infrastructure.
| Fiber Count | Tube Ø (mm) | Cable Ø (mm) | Tensile Strength (N) | Crush Resistance (N/100mm) | Min. Bending Radius | Weight (kg/km) |
|---|---|---|---|---|---|---|
| Long / Short Term | Long / Short Term | Static / Dynamic | ||||
| 2–12F | 2.0 | 6.0 | 200 / 400 | 300 / 1000 | 10D / 20D | 37 |
| 7.0 | 400 / 1000 | 300 / 1000 | 10D / 20D | 51 | ||
| 2.2 | 8.3 | 400 / 1000 | 300 / 1000 | 10D / 20D | 63 | |
| 16–24F | 2.8 | 8.3 | 400 / 1000 | 300 / 1000 | 10D / 20D | 65 |
Note: D = cable outer diameter.
| Fiber # | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Color | Blue | Orange | Green | Brown | Grey | White |
| Fiber # | 7 | 8 | 9 | 10 | 11 | 12 |
|---|---|---|---|---|---|---|
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Fibers 13–24 use the above base colors with tracer stripes for identification.
| Parameter | Unit | SM G.652D | SM G.657A1 | SM G.657A2 | MM 50/125 | MM 62.5/125 | MM OM3 | MM OM4 |
|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1310 / 1550 | 1310 / 1550 | 1310 / 1550 | 850 / 1300 | 850 / 1300 | 850 / 1300 | 850 / 1300 |
| Attenuation | dB/km | ≤0.36 / ≤0.22 | ≤0.36 / ≤0.22 | ≤0.36 / ≤0.22 | ≤3.0 / ≤1.5 | ≤3.0 / ≤1.5 | ≤3.0 / ≤1.5 | ≤3.0 / ≤1.5 |
| Relative Wavelength Attenuation Change(1282–1330 nm) | dB/km | ≤0.03 | ≤0.05 | ≤0.05 | — | — | — | — |
| Relative Wavelength Attenuation Change(1525–1575 nm) | dB/km | ≤0.02 | ≤0.05 | ≤0.05 | — | — | — | — |
| Chromatic Dispersion(1285–1340 nm) | ps/(nm·km) | ≥−3.0 to ≤+3.0 | ≤3.5 | ≤3.5 | — | — | — | — |
| Chromatic Dispersion @1550 nm | ps/(nm·km) | ≤18 | ≤18 | ≤18 | — | — | — | — |
| Chromatic Dispersion @1625 nm | ps/(nm·km) | ≤22 | — | — | — | — | — | — |
| Zero-Dispersion Wavelength (λ₀) | nm | 1312 ± 10 | 1300–1324 | 1300–1324 | 1295–1320 | 1320–1365 | — | — |
| Zero-Dispersion Slope (S₀) | ps/(nm²·km) | ≤0.092 | ≤0.092 | ≤0.092 | ≤0.097* | ≤0.11* | — | — |
| OFL Bandwidth @850 nm | MHz·km | — | — | — | — | — | ≥1500 | ≥3500 |
| OFL Bandwidth @1300 nm | MHz·km | — | — | — | — | — | ≥500 | ≥500 |
| Effective Modal Bandwidth (EMB) @850 nm | MHz·km | — | — | — | — | — | ≥2000 | ≥4700 |
| 10GBASE-SR Support Distance | m | — | — | — | — | — | 300 | 550 |
| Cladding Diameter | μm | 124.8 ± 0.7 | 125 ± 0.7 | 125 ± 0.7 | 125 ± 1 | 125 ± 1 | 125 ± 2 | 125 ± 2 |
| Core Diameter | μm | — | — | — | 50 ± 2.5 | 62.5 ± 2.5 | 50 ± 2.5 | 50 ± 2.5 |
| Core Non-Circularity | % | — | — | — | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 |
| Cladding Non-Circularity | % | ≤0.7 | ≤0.7 | ≤0.7 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Coating/Cladding Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Core/Cladding Concentricity Error | μm | ≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Note on Zero-Dispersion Slope for MM:For multimode fibers, the value listed under “Zero-Dispersion Slope” in your original data appears to be a misplacement. Multimode fibers do not use zero-dispersion slope as a key parameter—this row is retained only to reflect your input, but it is not applicable in practice. OM3/OM4 are defined by bandwidth, not dispersion.
| Test Condition | SM Fibers(1310/1550/1625 nm) | MM Fibers(850/1300 nm) |
|---|---|---|
| Temperature Cycling(−60°C to +85°C) | ≤0.05 dB/km | ≤0.15 dB/km |
| Temperature-Humidity Cycling(−10°C to +85°C, 98% RH) | ≤0.05 dB/km | ≤0.20 dB/km |
| Water Soak(23°C, 30 days) | ≤0.05 dB/km | ≤0.20 dB/km |
| Damp Heat Aging(85°C, 85% RH, 30 days) | ≤0.05 dB/km | ≤0.20 dB/km |
| Dry Heat Aging(85°C, 30 days) | ≤0.05 dB/km | ≤0.20 dB/km |
